关于 llm 工具调用原理的学习

最后发布时间 : 2025-12-12 16:34:39 浏览量 :

LLM 本身只能输出文本，工具调用需要开发者根据文本匹配函数名，并传入llm提取的参数进行调用

首先我们看下商业大模型的tool calls 输出的原始文本

接口调用

curl https://api.deepseek.com/v1/chat/completions \
  -H "Authorization: Bearer sk-xxxxxxxxxxxxxxxx" \
  -H "Content-Type: application/json" \
  -N \
  -d '{
    "model": "deepseek-chat",
    "stream": true,
    "messages": [
      {"role": "user", "content": "查询一下杭州天气"}
    ],
    "tools": [
      {
        "type": "function",
        "function": {
          "name": "get_weather",
          "parameters": {
            "type": "object",
            "properties": {
              "city": {"type": "string"}
            },
            "required": ["city"]
          }
        }
      }
    ]
  }'

输出结果

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "content": "我来"
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "content": "帮"
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

// 类似的格式这里省略
您查询杭州的天气

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "content": "情况"
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "content": "。"
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}



// 提取参数
data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "id": "call_00_EAGlGsFUdTpSUdeBuNANMRQK",
                        "type": "function",
                        "function": {
                            "name": "get_weather",
                            "arguments": ""
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "function": {
                            "arguments": "{"
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "function": {
                            "arguments": "\""
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "function": {
                            "arguments": "city"
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "function": {
                            "arguments": "\""
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "function": {
                            "arguments": ": "
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "function": {
                            "arguments": "\""
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "function": {
                            "arguments": "杭州"
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "function": {
                            "arguments": "\""
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "tool_calls": [
                    {
                        "index": 0,
                        "function": {
                            "arguments": "}"
                        }
                    }
                ]
            },
            "logprobs": null,
            "finish_reason": null
        }
    ]
}

data: {
    "id": "6214827f-bae2-4a73-a169-9d7badc50cd8",
    "object": "chat.completion.chunk",
    "created": 1765527423,
    "model": "deepseek-chat",
    "system_fingerprint": "fp_eaab8d114b_prod0820_fp8_kvcache",
    "choices": [
        {
            "index": 0,
            "delta": {
                "content": ""
            },
            "logprobs": null,
            "finish_reason": "tool_calls"
        }
    ],
    "usage": {
        "prompt_tokens": 295,
        "completion_tokens": 52,
        "total_tokens": 347,
        "prompt_tokens_details": {
            "cached_tokens": 192
        },
        "prompt_cache_hit_tokens": 192,
        "prompt_cache_miss_tokens": 103
    }
}

data: [DONE]

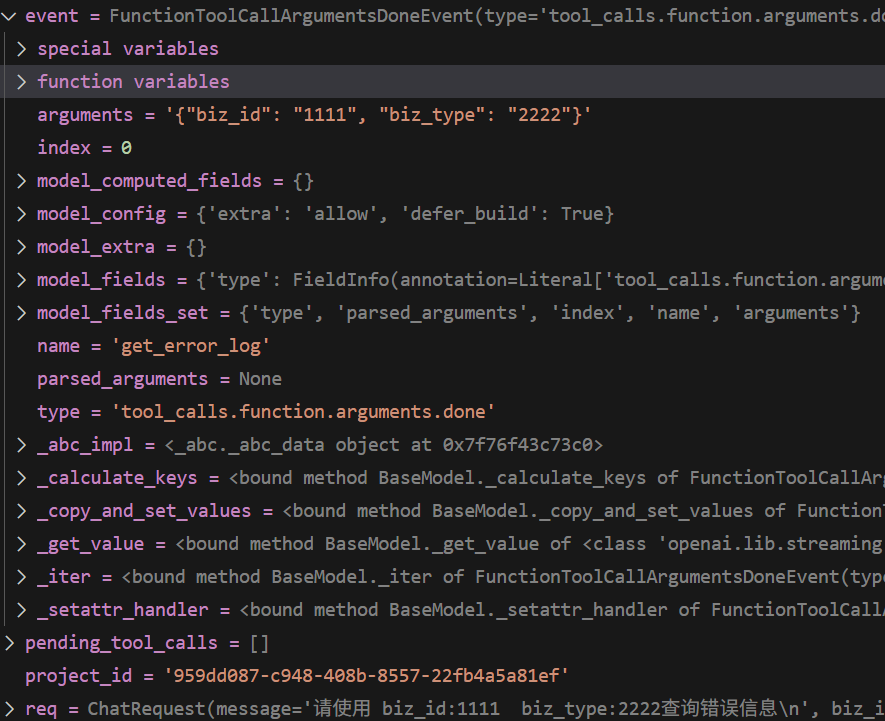

可以看到原始的输出就是一个个的字符流。参数和函数名只是一段文字。此时当我们使用python的openaipip包进行调用时，这个python工具会自动帮助我们将函数名称和参数封装成一个对象

(type='tool_calls.function.arguments.done',
 name='get_error_log',
 index=0,
 arguments='{"biz_id": "1111", "biz_type": "2222"}',
 parsed_arguments=None)

生信小木屋

此时开发者再进行函数调用

 if pending_tool_calls:
    tool_results = []
    for tc in pending_tool_calls:
        func = tc.function.name   # get_error_log
        args = json.loads(tc.function.arguments)

        if func == "get_error_log":
            result = await tool_get_error_log(
                args["biz_id"], args["biz_type"]
            )
